Product Detail

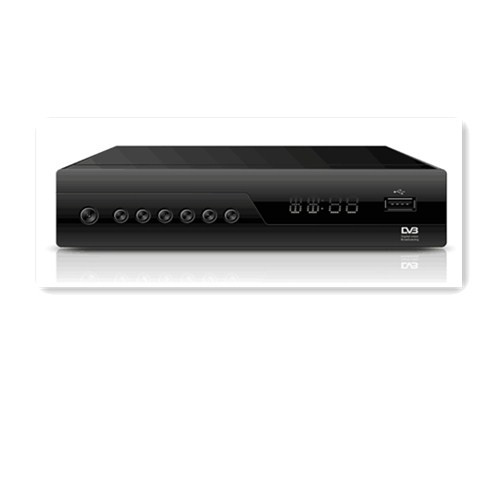

DVB T2
DVB T2
Detail
SPECIFICATION:
Feature 1. Fully SD/HD DVB-T/T2,  SD/HD MPEG2 and  MPEG4 AVC H.264
2. Full HD,support up to 1080P
3.Auto and manually scan all available TV and radio channels
4.Aspect ratio 16:9 and 4:3
5.HD, YUV, RCA, coaxial output
6.Multi-language subtitle output supported
7.Powerful and highly effective 7-day EPG function
8.Supports teletext
9.Parental lock
10.PVR, timeshift  via USB 2.0
11.Multimedia playback and software upgrade via USB 2.0
12.Stores up to 1,000 programs
TunerRF input frequency: 44-1002Mhz
Bandwith: 6/7/8MHz
Input level: -83dBm
Signal input: IEC-type female
Chipset: MS 7T01
Multimedia format:Picture: JPEG,BMP,PNG
Audio: MP3,WMA
Video: MKV,AVI,DIVX,XVID,MOV,VOB,FLV,3GP,DAT,MPEG,MPG,MP4,TS,TRP …
Demodulation: QPSK, 16QAM, 64QAM, 256QAM
Code Rate: 1/2, 3/5,2/3, 3/4, 4/5, 5/6
Guard: from 1/128 to 1/4
FFT Mode: from 1K to 32K
Front panelLED display
USB :for firmware upgrade, PVR and multimedia playback
Function buttons
Rear panel outputHD 576i, 576p, 720p and 1080i,1080P
Loop through output: IEC-type, connector, single tuner
Coaxial: RCAX1
YpbPr RCAX3
L/R audio RCAX2
CVBS
SCART(optional)
othersMpeg transport stream and A/V decoding
Video standard: MPEG-4 AVC/H.264 HP@L4
SCART video model CVBS/RGB (for Europe)
Aspect ratio: 4:3, 16:9
Video resolution: 576i, 576p, 720p and 1080i,1080P
Audio standard: ISO/IEC 14.496-3,AAC,AAC+
Audio mode: mono, dual-channel, stereo
Standard:DVB-T(ETSI EN 300 744), DVB-T2(ETSI EN 302 755)
